• 货号：JLC12117
• CAS号：
• 分子式：
• 分子量：
• Beilstein号：
• EC号：
• MDL号：
• PubChem编号：

中文名称： Graphene Supermarket铜基六角氮化硼单层薄膜

英文名称： Single layer h-BN (Boron Nitride) film grown in copper foil

CAS号： 7440-42-8

包  装： 1盒

参  数

面  积： 5cmx2.5cm

保质期： 6月常温干燥避光

江南纯试剂为您提供高质量的铜基单层六角氮化硼薄膜，六角氮化硼结构是类石墨烯结构，具有很高的研究价值，也可以用转移石墨烯的方法转移六角氮化硼材料。表征完备，质量可靠。

Single layer h-BN (Boron Nitride) film grown in copper foil.

h-BN is an insulator with a direct band gap of 5.97 eV. Due to its strong covalent sp2 bonds in the plane, the in-plane mechanical strength and thermal conductivity of h-BN has been reported to be close to that of graphene. h-BN has an even higher chemical stability than graphene; it can be stable in air up to 1000 °C (in contrast, for graphene the corresponding temperature is 600 °C).

During Chemical Vapor Deposition, BN is grown on both sides of the copper foil

Graphene Supermarket铜基六角氮化硼单层薄膜Specifications:

Close to complete coverage (90-95%), with some minor holes

Thickness of the copper foil is 20 microns

High crystalline quality, see SAD (Selected area [electron] diffraction) data

Quality is confirmed by TEM.

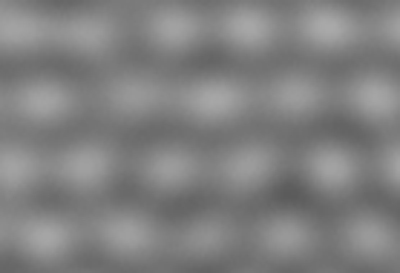

TEM shows perfect hexagonal structure.

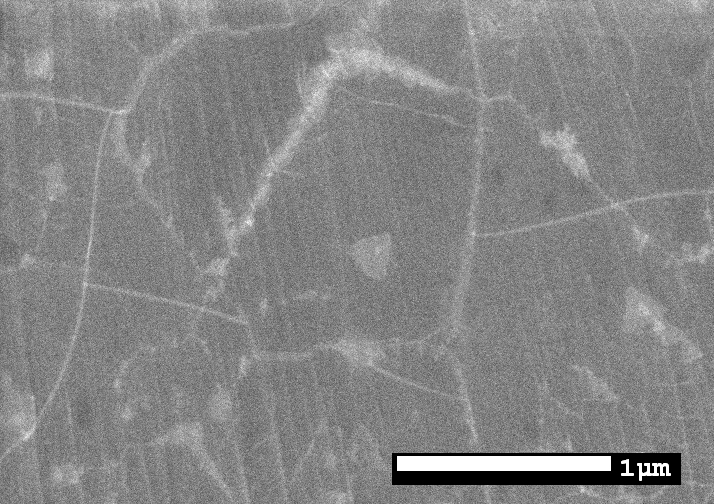

On SEM image (below), BN is seen as wrinkles on top of the copper foil.

SAD data of h-BN

If transferred onto an SiO2 substrate, the BN film may be seen as a white film. However, it is difficult to recognize the BN film on copper using a microscope.

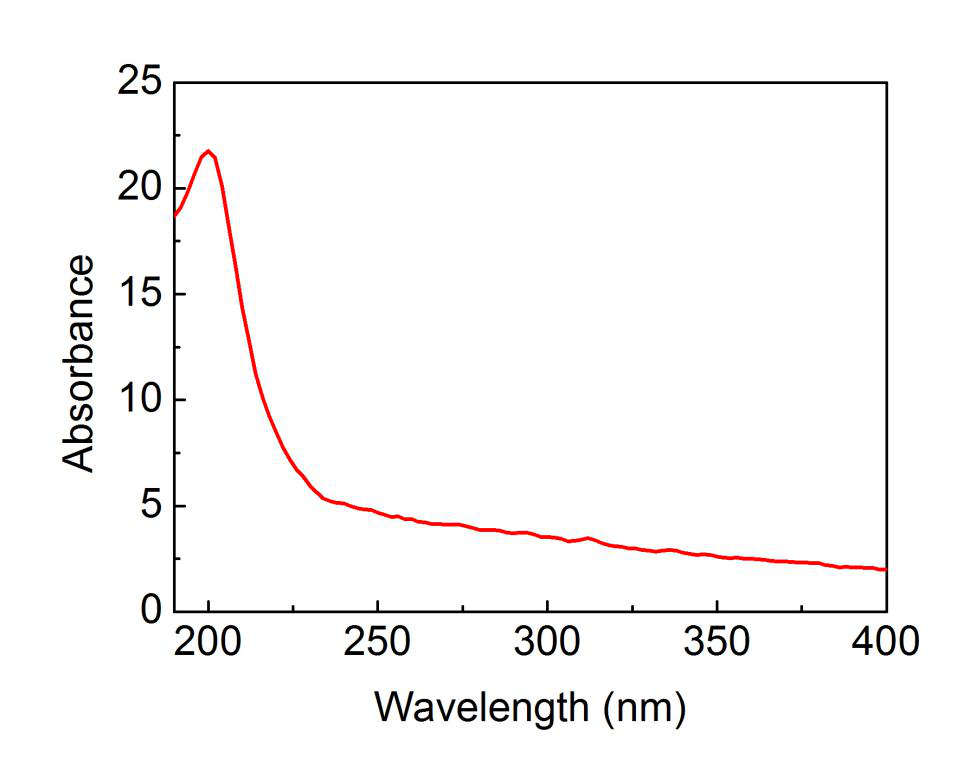

Absorbance data BN on copper

Transfer: PMMA Procedure, similar to that of graphene. It may be transferred on most substrates, which we may do in-house as custom work.
